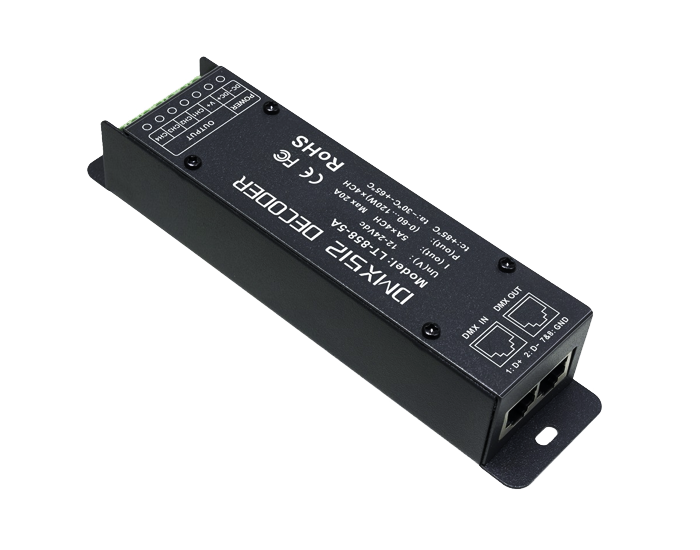

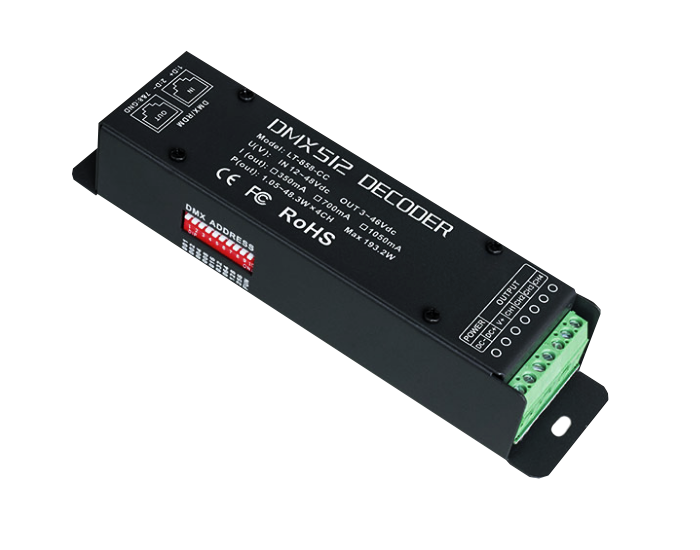

IllumAdjust™ 4-Channel DMX Controlled Dimmer

Control Your LED Devices with IllumiSci® Intelligent DMX Dimmers


  • 4 DMX512 Channels
  • Constant Voltage PWM Control
  • Maximum of 5A per Channel
  • RJ45 connection for DMX signal in/out
  • Phoenix Connector for Voltage Input & Signal Output

Model Versions

Bulk Pack
IS-IT-DIM-DMX858-4CH

Categories: , ,
SHARE

Tired of the problems with cheap dimmers from Asia? IllumiAdjust™LED Dimmers are designed with robustness in mind. The dimmers that we do source from Asia are carefully quality controlled, and some are built to our specifications. We make configuring dimming control for you LED system, much easier and safer.

  • Ideal for controlling multiple channels with DMX control signal
  • Save Energy by controlling the illumination of whichever
  • Create ambiance and dramatic lighting effects
  • Extend the life of your LED arrays by controlling individual channels
Power Supply Type

Constant Voltage DC (Switched Mode)
Input/Output Voltage

DC12V～DC24V DC
Max Load Current

5A/CH × 4CH for a Max of 20A
Max Output Power

12V = 60W/ch, 24V = 120W/ch Max Total 480w
Output Scale

256 Levels (8-Bit), 0-100% Dimming Range
Input Signal

DMX512/RDM, with RJ-45 Only
Output Channels

4 Channel
Working Temperature Range

-22F to 149F (-30℃ to 65℃)
Device Dimensions

L 6.9” × W 1.7” × H 1.3” (L 175 × W 42 × H 33mm)
Package Size

L 7.3” × W 1.9” × H 1.7” (L 183 × W 48 × H 41mm)
Weight

0.7 pounds (310g)

• IllumiTile® LED Light Engines
• IllumiFlex™ Flexible LED Strips
• IllumiPower™ LED Drivers and LED Power Supplies
• IllumiSci® 12V DC LED Products and other brands of LED products

Home

Recreational Vehicles
Camper Lighting
Cove Lighting
Accent/Effects/Task Lighting
Movie and Game Room Lighting
Home Theater Backlighting
Under-Cabinet or In-Cabinet Lighting
Shelf Lighting
Drawer Lighting

Commercial

Retail Display Lighting
Product Manufacturing
Point of Sale Display Lighting
Hotel & Restaurant Lighting Effects
Bar Lighting Effects
Sign and Graphics Display Illumination
Architectural Model Lighting
Storefront Display
(Dry & Room Temperature Only)
TV and Entertainment Unit Lighting
Desk Area Lighting
Workbench/Task Area Lighting
Display Case Lighting
(Dry & Room Temperature Only)
Accent & Decor Lighting
Under Cabinet Lighting
Photography/Film/TV Lighting

Hobby

Model Train Lighting
Model Lighting
Craft Lighting

Car & Vehicle Interior Lighting (Requires an IllumiSci® Regulator)

Automotive Interior Accent Lighting
Boats and Marine Crafts
(for non-wet areas)
Interior Effects Lighting
Parade Float Lighting
Stage Vehicle Lighting

LT-858-5A Datasheet

LT-858-5A User Manual
