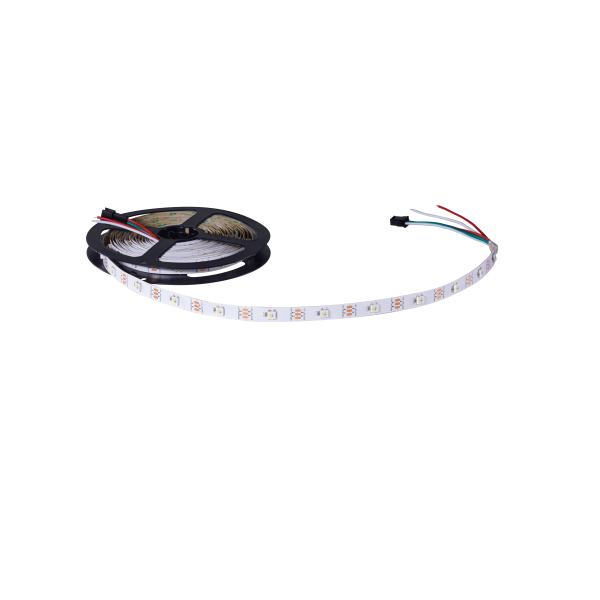

IllumiFlex Pixel LED Strip (30 LED/M) – Cool White

High Quality LED Strips that are Ideal for Commercial or Residential Use

IllumiFlex LED strips are extremely versatile, and deliver even dispersion with high-brightness!

  • RGBW individually addressable LED’s (White LED is
      Cool White (6000K CCT)
  • UL Listed
  • 12V DC
  • High quality flexible circuit strips distribute current more effectively
      than common LED strips to minimize voltage drop.
  • Extremely Versatile Design
  • 12V DC
  • Eco Friendly with Low Power Consumption
  • Easily connects with IllumiSnap harnesses to the
      IllumiSci® Modular Family of Products
  • Mounts easily with high quality adhesive
  • Designed to work with a Class 2 power supply
  • Dimmable

Model Versions

Bulk Pack
IT-IF-30/M-5050-RGBW-B

Retail Pack
IT-IF-30/M-5050-RGBW-R

Color Temprature IT-IF-60/M-5050-RGBW-1-1-1-1-1-1 Categories: ,

QUALITY FLEXIBLE LED STRIPS

IllumiFlex flexible LED strips are not your old-fashioned LED strips. They have a genuine UL certified file, and are offered in a variety of common configurations and color temperatures to accommodate your illumination system needs. They are made to an IllumiSci® strict specification to be robust and offer high quality light and features. Plus, with the IllumiSnap option, they can snap together with many other IllumiSci® LED lighting system devices such as the IllumiTile® Light Engine or IllumAdjust dimmers (for white LED’s). This means that connecting a system can be as simple as snapping together IllumiSci’s® pre-configured devices!

Note that UL Compliance requires using only IllumiSci® UL Listed harnesses with a Class 2 Power supply.

ENERGY EFFICIENT

As with all of IllumiSci® products, IllumiFlex flexible LED strips offer a lower power and reliable “green” solution compared to many other lighting methods.

Light Output

30 LED/Meter

Dimensions

8mm Wide X 5 Meters (per reel) (White Strips)

Input Voltage

5VDC for RGBW Pixel LED strips

Power

9.5W/M for 30 LED/Meter RGBW Pixel LED strips

Mounting Methods

3M Peelable Adhesive Backing

Available Temperatures

RGBW – Red, Green, Blue, Cool White (6000K CCT)

Thermal Management

Convection cooling for open installations with Room Temperature Environments not exceeding 95 °F (35 °C)
Forced-Air (Fan Cooling) for use in enclosures

Control

RGBW – IllumiSci DMX to SPI Converter Module or other WS2812 Controller

Connectivity

IllumiSnap 3-Pin Pixel LED Connectors
Solder Pads

Safety Certification

UL Listed – Class 2 (Note that a UL compliant system requires the use of IllumiSnap Harnesses only.)

IllumiSci Product Family Datasheet r1.4.0

IllumiFlex User Manual r1.4

Home

Recreational Vehicles
Camper Lighting
Cove Lighting
Accent/Effects/Task Lighting
Movie and Game Room Lighting
Home Theater Backlighting
Under-Cabinet or In-Cabinet Lighting
Shelf Lighting
Drawer Lighting

Commercial

Retail Display Lighting
Product Manufacturing
Point of Sale Display Lighting
Hotel & Restaurant Lighting Effects
Bar Lighting Effects
Sign and Graphics Display Illumination
Architectural Model Lighting
Storefront Display
(Dry & Room Temperature Only)
TV and Entertainment Unit Lighting
Desk Area Lighting
Workbench/Task Area Lighting
Display Case Lighting
(Dry & Room Temperature Only)
Accent & Decor Lighting
Under Cabinet Lighting
Photography/Film/TV Lighting

Hobby

Model Train Lighting
Model Lighting
Craft Lighting

Car & Vehicle Lighting

Automotive Interior Accent Lighting
Boats and Marine Crafts
(for non-wet areas)
Interior Effects Lighting
Parade Float Lighting
Stage Vehicle Lighting
