IllumiFlexTM Addressable Pixel LED Strip – 30 LED/M

Control Each LED for Dramatic Effects

IllumiFlex® High Quality Pixel LED strips offer Excellent Color Rendering and Robust Design

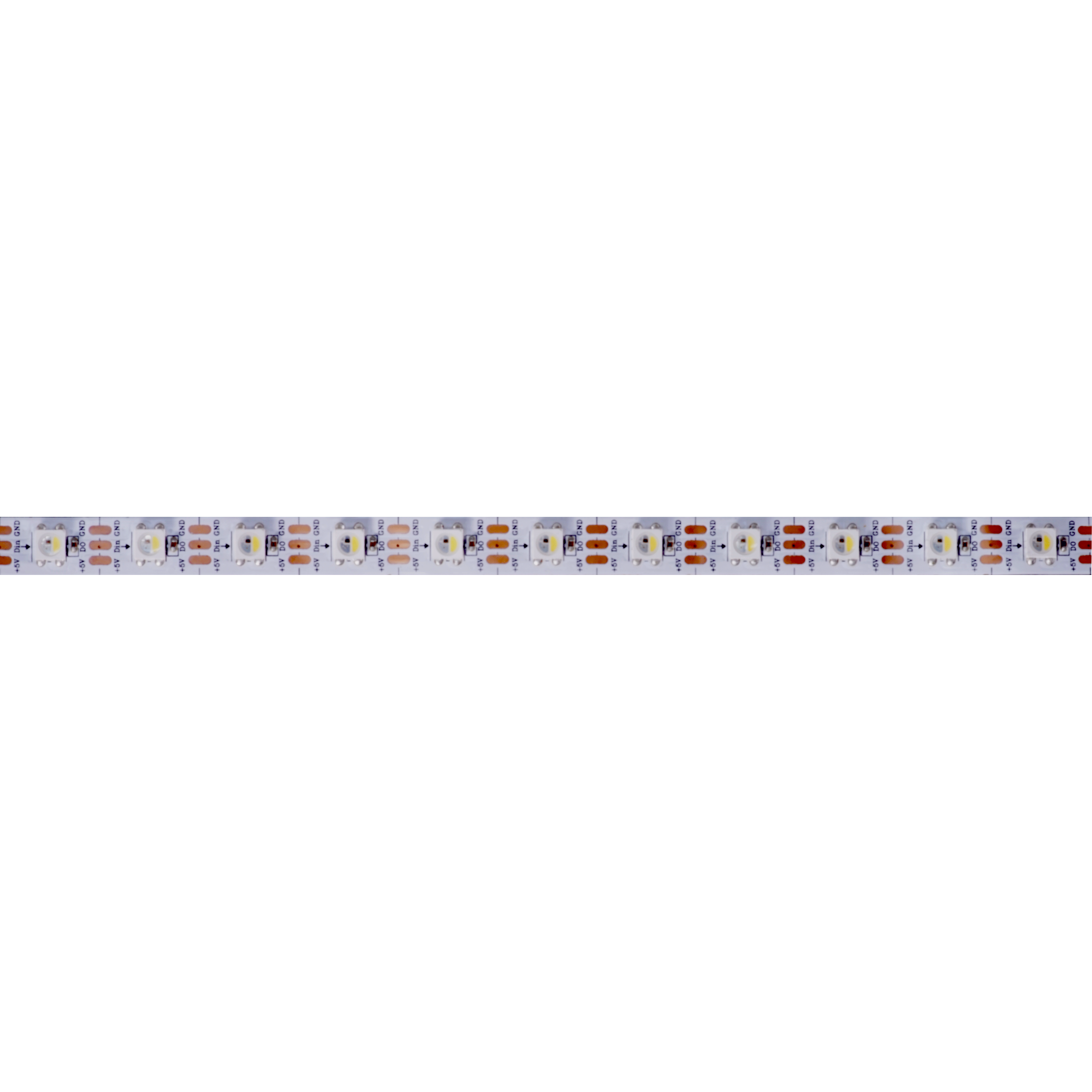

IllumiFlex Addressable Pixel LED Strip – 30 LED/Meter – RGBW (Cool White) – WS2812 Protocol

Model Number

IT-IF-30/M-5050-RGBW

IllumiFlex High Quality Addressable Pixel LED Strips

Our IllumiFlex Addressable Pixel LED Strips (a.k.a. LED Tape) are designed and manufactured to work well for commercial applications where light quality and robustness are important. IllumiFlex Flexible LED strips offer a simple, high quality and robust solution to create dramatic, multi-color LED effects with individually addressable LED’s. Use IllumISci devices for control, or use your desired control front-end.

For smaller array applications, use the IllumiSci®and SPI Converters (decoder) make your pixel array simple and easily controllable. As with all of our products, we focus upon robustness of design and longevity so that our products perform in commercial environments.

  • Simple to configure
  • Offered in 60 LED/M or 30 LED/M
  • WS2812 Protocol
  • Works with multiple type of pixel LED control devices
    RGBW (Red, Green Blue, White)
Voltage

5VDC (Min 4.7VDC, Maximum 5.6VDC, not polarity protected)

Power

9 Watts/Meter

Current (per Meter)

1800mA

Pin Allocations

3-Pin JST Male/Female with additional power leads (+5VDC, GND)
GND: White
Signal: Green
+5VDC: Red

Control Protocol

WS2812

Beam Angle

120 Degrees

LED Type

5050

LED Spacing

30 LED/M 33.4mm

Length (per Reel)

5 Meters

IP Rating (Moisture & Dust Rating)

IP 20 (Dry, interior environments only)

Life Expectancy

50,000 Hours

PCB (Strip or Tape Width)

10mm (0.34”)

Height

2.15mm (0.09”)

LED Pitch (Spacing)

60 LED’s per Meter

Addressable LED Colors

RGBW

Cuttable Segment Length (1 LED)

16.7mm (0.66”)

Warranty

IllumISci®One year Warranty (Limited)

Thermal

-40 to 60°C Operating Temperature

IllumiSci Product Family Datasheet r1.4.0

IllumiFlex User Manual r1.4

Home

Recreational Vehicles
Camper Lighting
Cove Lighting
Accent/Effects/Task Lighting
Movie and Game Room Lighting
Home Theater Backlighting
Under-Cabinet or In-Cabinet Lighting
Shelf Lighting
Drawer Lighting

Commercial

Retail Display Lighting
Product Manufacturing
Point of Sale Display Lighting
Hotel & Restaurant Lighting Effects
Bar Lighting Effects
Sign and Graphics Display Illumination
Architectural Model Lighting
Storefront Display
(Dry & Room Temperature Only)
TV and Entertainment Unit Lighting
Desk Area Lighting
Workbench/Task Area Lighting
Display Case Lighting
(Dry & Room Temperature Only)
Accent & Decor Lighting
Under Cabinet Lighting
Photography/Film/TV Lighting

Hobby

Model Train Lighting
Model Lighting
Craft Lighting

Car & Vehicle Interior Lighting

Automotive Interior Accent Lighting
Boats and Marine Crafts
(for non-wet areas)
Interior Effects Lighting
Parade Float Lighting
Stage Vehicle Lighting

IllumiFlex<sup>™</sup> Addressable Pixel LED Strip can be used with the DMX-SPI Converter Module or other appropriate front-end control systems since it utilizes the WS2812 protocol.

The IllumiSci<sup>®</sup> Pixel LED Converter Module can be used with a variety of pixel LED strip protocols. See specifications for details.
