Q-Tran® QZ LED Drivers

Use Q-Tran Drivers to Power IllumiTile®

The QZ is a versatile Class 2 LED driver with dimmable or non-dimmable options. This LED driver offers 24VDC constant voltage output, and is available in 30 Watt up to 288 Watt (96W x 3 Driver) configurations. Pulse Width Modulation (PWM) output provides smooth, flicker-free dimming.

  • Constant Voltage 24VDC Output (CV)
  • Dimming Capable

                Phase Dimming: Works with Forward Phase/Leading Edge,
                MLV and Reverse Phase/Trailing-Edge, ELV, TRIAC Dimmers
                Dimming Range: 0.1% – 100%
                0-10V Dimming
                1-10V Dimming
                10V PWM
                Flicker-Free Dimming
                High frequency WPM Output Reduces Visible Flicker

  • Follows Recommended Practices of IEEE Standard P1789 to Mitigate Flicker
  • Vertical or Horizontal Surface Mount
  • Input Voltage – Universal (110-277V)
  • Wide Operating Temperature Range: -40˚F to +140˚F
  • UL & cUL Listed
  • Type HL Rated
  • Compliant to FCC Part 15B
  • 5 Year Warranty (from Q-Tran)

IllumiTile 10x12 Array with Drivers and Controls












Model Versions

Phase Dimming (White Case)

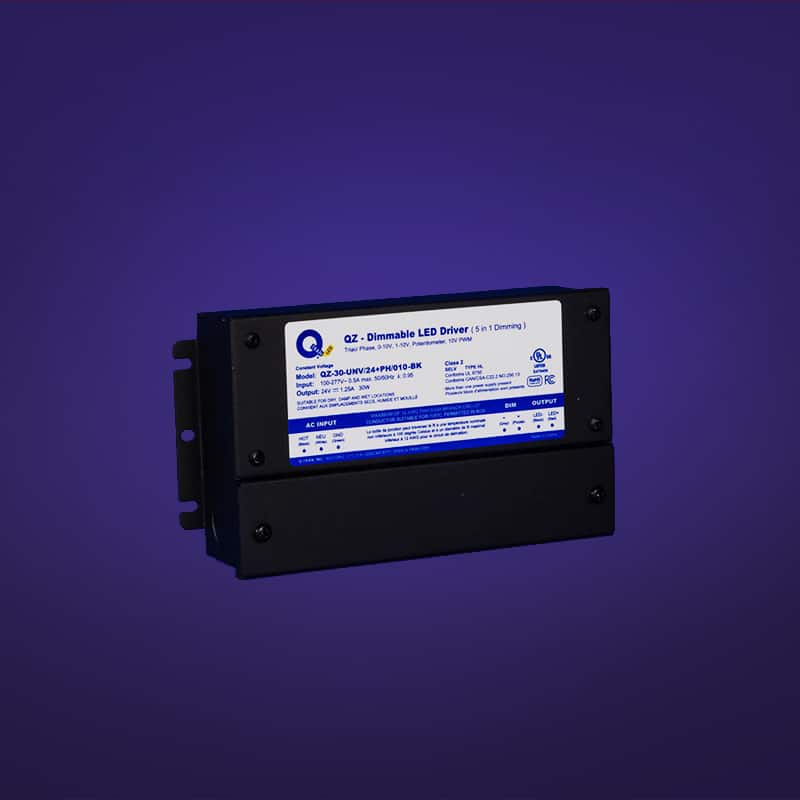

QZ-30W-UNV-24V-PH-WH (Single Driver)
QZ-60W-UNV-24V-PH-WH(Single Driver)

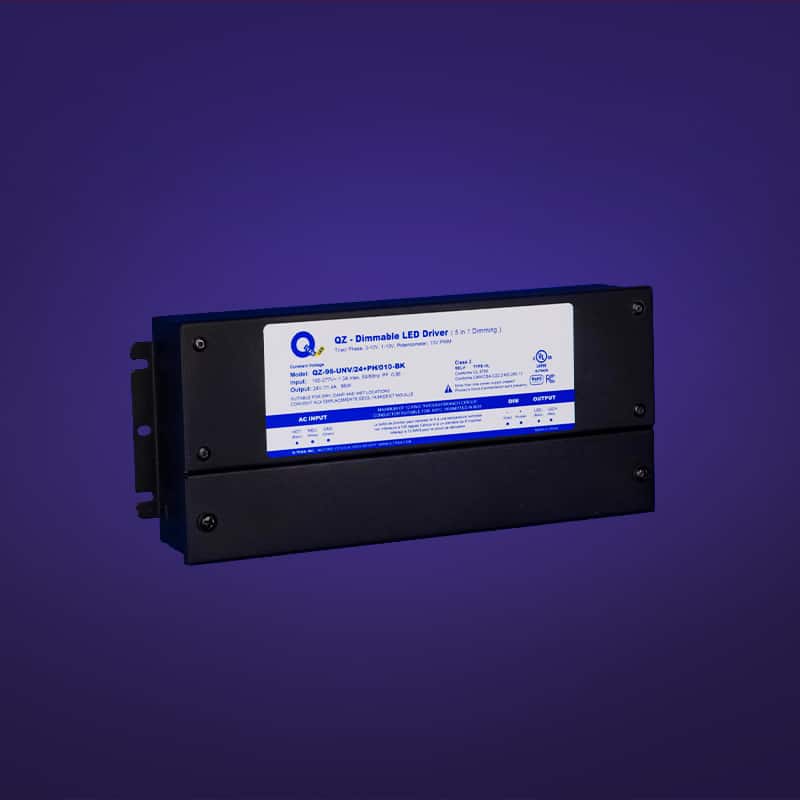

QZ-96W-UNV-24V-PH-WH (Single Driver)

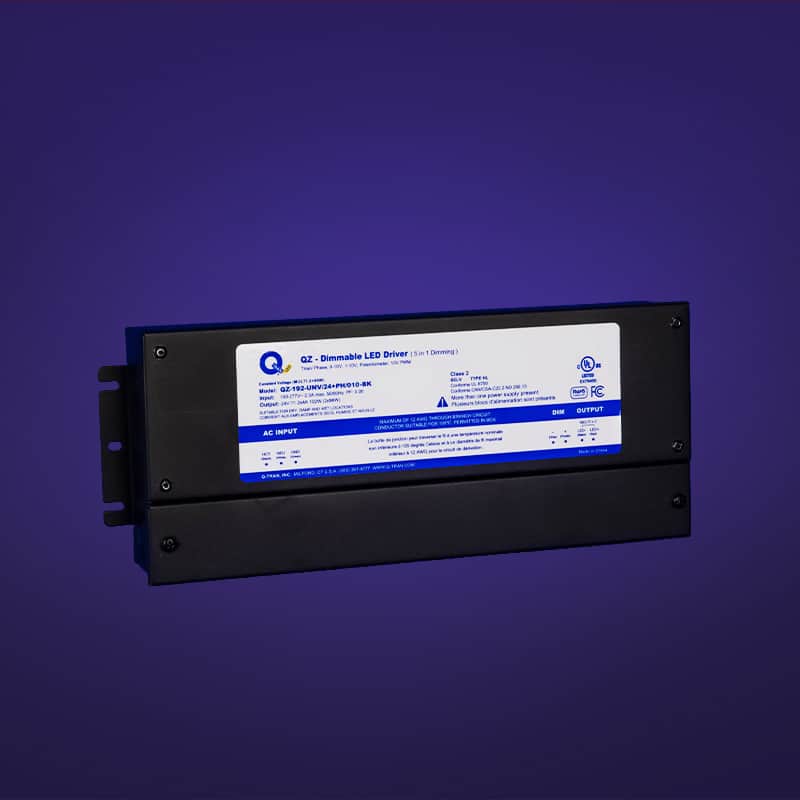

QZ-192W-UNV-24V-PH-WH (Two Drivers)

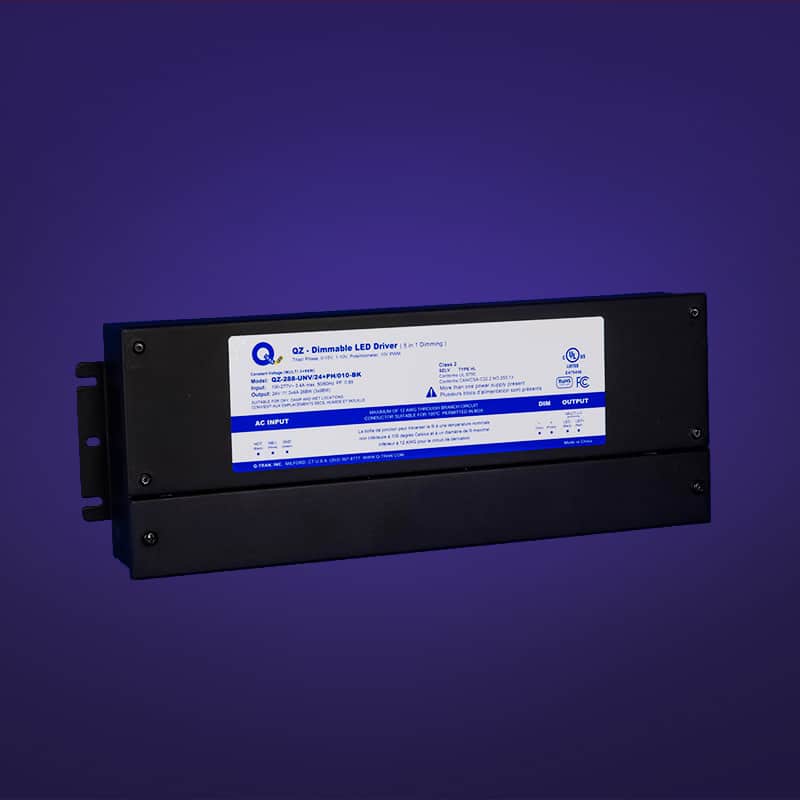

QZ-288W-UNV-24V-PH-WH (Three Drivers)

0-10V Dimming (White Case)
QZ-30W-UNV-24V-010-WH (Single Driver)
QZ-60W-UNV-24V-010-WH (Single Driver)
QZ-96W-UNV-24V-010-WH (Single Driver)
QZ-192W-UNV-24V-010-WH (Two Drivers)
QZ-288W-UNV-24V-010-WH (Three Drivers)

Non-Dimming (White Case)
QZ-30W-UNV-24V-ND-WH (Single Driver)
QZ-60W-UNV-24V-ND-WH (Single Driver)
QZ-96W-UNV-24V-ND-WH (Single Driver)
QZ-192W-UNV-24V-ND-WH (Two Drivers)
QZ-288W-UNV-24V-ND-WH (Three Drivers)

IllumiTile® Applications


IllumiTile® Light Engine (ILE) offers an innovative, high quality and very simple solution to create a large, flat LED array for whatever want to you build it into. Edge-lit solutions don’t even come close to the light output capability and versatility of IllumiTile®. Plus, IllumiTile® Light Engines have patented design and are UL Listed.


IllumiTile® LED arrays use the same IllumiSnap™ connections that are used in most other IllumiSci© LED lighting system devices. This means that connecting a system can be as simple as snapping together IllumiSci’s® pre-configured devices with IllumiSnap connectors or harnesses.


Get very bright, wide and even dispersion (no noticeable spotting) at just one inch from the IllumiTile® array with most 1/4” diffusion materials. The IllumiTile® patented technology makes it possible to configure to your heart’s desire!


As with all of IllumiSci’s® products, IllumiTile LED arrays offer a lower power, lower heat and reliable “green” solution compared to many other lighting devices. Note that UL Compliance requires using only IllumiSci® UL Listed harnesses with a Class 2 Power supply.

Input Voltage

(Vrms) 110-277

Input Current

max (Arms) 3.3A @ 110V

Inrush Current

max* (Apk) 43A@277V

Input Frequency

(Hz) 50/60

Input Power

(W) 330

Output Current (A)

288W, 3x4A @ 24V

Output Voltage

nom (V) 24

Output Power

(Wmax) 288W

THD (%) --- --- 20
PF (%) 0.94 --- ---Working
Temp (ºF) --- --- 140
IP Rating 66 --- ---*-200us event
  • Short Circuit Protection
  • Over Loading Protection
  • Over Temperature Protecton
  • I/P-O/P:1.88KVAC
  • I/P-O/P:100MΩ/500VDC/77ºF/70%RH
  • EMI/RFI :FCC 47 CFR Part 15 Subpart B
  • Certified:UL8750
