Q-Tran® QZ-DMX
Multi-Channel LED Driver

Use Q-Tran Drivers to Power IllumiTile®

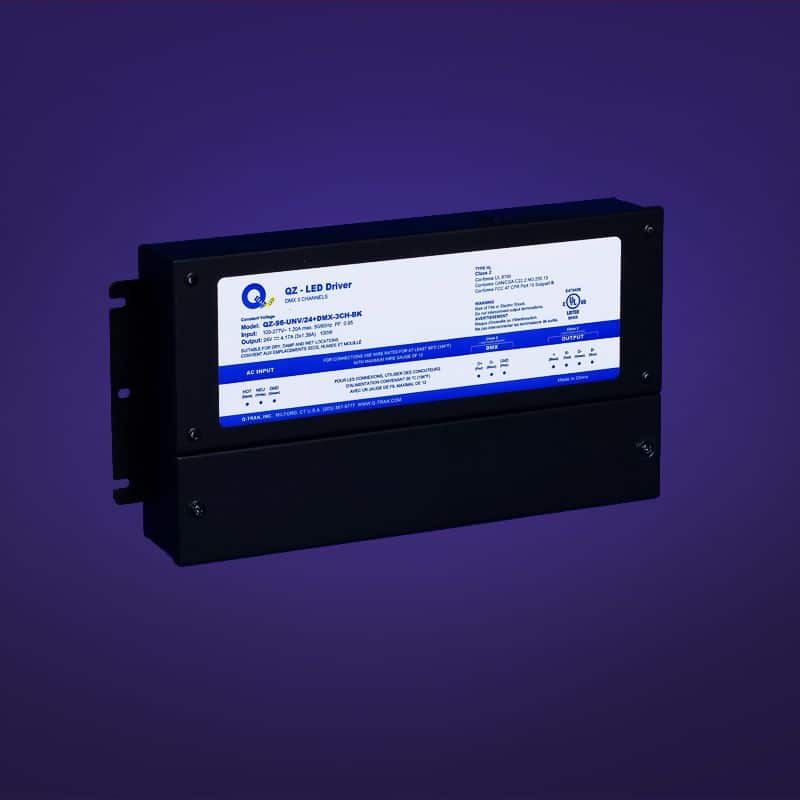

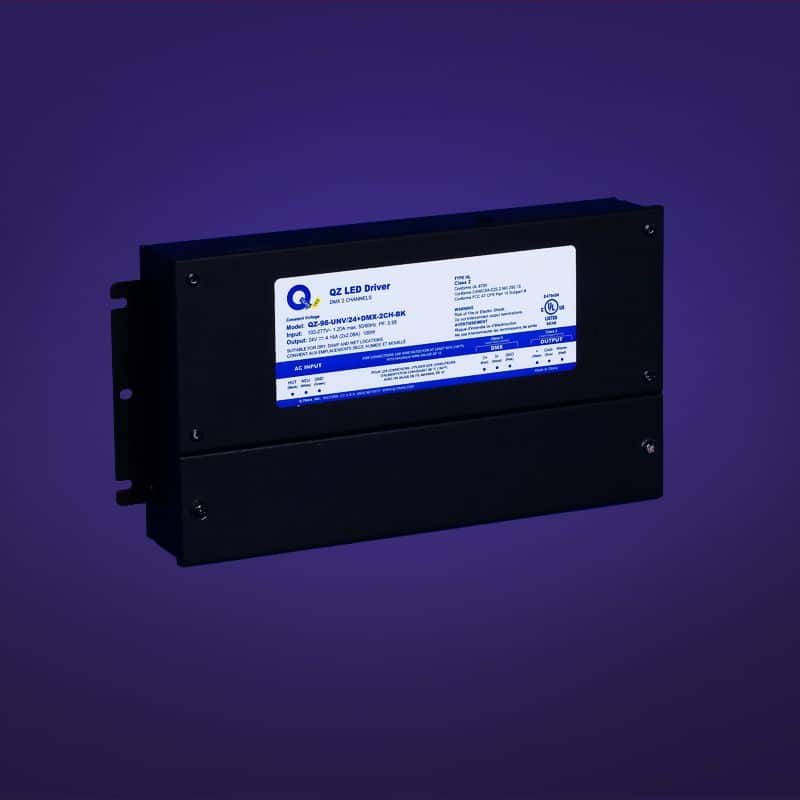

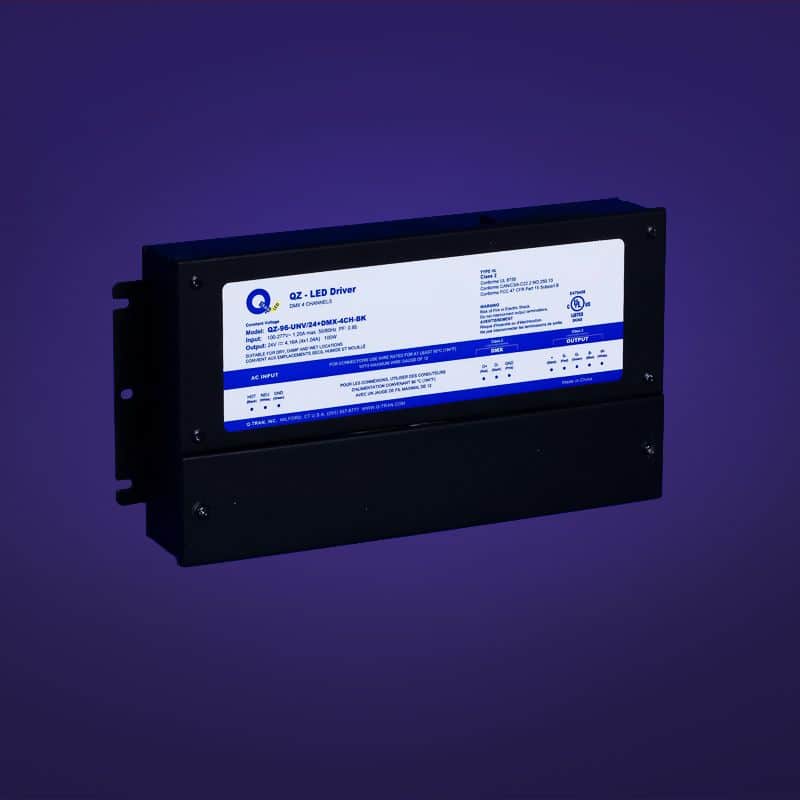

The QZ-DMX is a versatile Class 2 LED driver with DMX control
capabilities with 24VDC (96W) constant voltage output. This innovative LED driver features up to 4 channel outputs that can power static white, static color, white-tunable, warm dim and dynamic color LED products. It may be configured with the Q-Tran NFC App fthat allows reading and writing DMX Addresses, along with
adjustment of the output voltage.

  • Constant 24V Volt (CV) Output
  • 8 Bit DMX Control (DMX512)
  • RDM Addressing
  • NFC App for DMX Addressing & Voltage Adjustment
  • Adjustable Output Voltage Range: 24V-26V
  • IP66 Rated
  • Suitable for Indoor Use
  • Vertical or Horizontal Surface Mount
  • Primary (AC) Input Voltage is Universal (100-277V)
  • Wide Operating Temperature Range: -40˚F to +140˚F
  • UL & cUL listed
  • Type HL Rated
  • Compliant to FCC 47 CFR Part 15 Subpart B
  • 5 year warranty (from Q-Tran)
Category:
SHARE

Model Versions

Channel Options
QZ-96W-UNV-24V-DMX-1CH-BK
QZ-96W-UNV-24V-DMX-2CH-BK
QZ-96W-UNV-24V-DMX-3CH-BK
QZ-96W-UNV-24V-DMX-4CH-BK





IllumiTile 10x12 Array with Drivers and Controls

IllumiTile® Applications

UYIVaROj_2UYIVaROj_2
XkivVvymXkivVvym
UYIVaROjUYIVaROj
nf7eFd58nf7eFd58
yqIjBw-vyqIjBw-v
YJXSXFirYJXSXFir
uW11t4_8uW11t4_8
sEPLF30RsEPLF30R
ozQYYRlgozQYYRlg
OpxuXYnQOpxuXYnQ
IuYkpe9gIuYkpe9g
hW7mGXtmhW7mGXtm
hhPAyG3chhPAyG3c
eUyrxIMjeUyrxIMj
yo-pk1qryo-pk1qr
UXqFx2ieUXqFx2ie
OpxuXYnQOpxuXYnQ
a5dXR3hQa5dXR3hQ
89SQHsbg89SQHsbg
0Gccij3w0Gccij3w

ULTRA-VERSATILE DESIGN

IllumiTile® Light Engine (ILE) offers an innovative, high quality and very simple solution to create a large, flat LED array for whatever want to you build it into. Edge-lit solutions don’t even come close to the light output capability and versatility of IllumiTile®. Plus, IllumiTile® Light Engines have patented design and are UL Listed.

SIMPLE LAYOUT & CONNECTIVITY

IllumiTile® LED arrays use the same IllumiSnap™ connections that are used in most other IllumiSci© LED lighting system devices. This means that connecting a system can be as simple as snapping together IllumiSci’s® pre-configured devices with IllumiSnap connectors or harnesses.

WIDE DISPERSION

Get very bright, wide and even dispersion (no noticeable spotting) at just one inch from the IllumiTile® array with most 1/4” diffusion materials. The IllumiTile® patented technology makes it possible to configure to your heart’s desire!

ENERGY EFFICIENT

As with all of IllumiSci’s® products, IllumiTile LED arrays offer a lower power, lower heat and reliable “green” solution compared to many other lighting devices. Note that UL Compliance requires using only IllumiSci® UL Listed harnesses with a Class 2 Power supply.

Input Voltage

(Vrms) 100-277
Input Current, max

(Arms) 1.25A @ 100V
Inrush Current, max*

48.5A@277V
Input Frequency

(Hz) 50/60
Input Power

(W) 125
Output Voltage, nom

(V) 24
Output Current

(A) 4.17A @ 24V
Output Power

(Wmax) 96W


                                Min 	Nom 	Max
	THD (%) 		--- 	--- 	20
	PF (%) 			0.94 	--- 	---
	Working Temp (ºF) 	--- 	--- 	140
	IP Rating 		66 	--- 	---
					*-200us event
  • Short Circuit Protection
  • Over Loading Protection
  • Over Temperature Protecton
  • I/P-O/P:1.88KVAC
  • I/P-O/P:100MΩ/500VDC/77ºF/70%RH Compliance
  • EMI/RFI :FCC 47 CFR Part 15 Subpart B
  • Certified :UL875
Channel Size Primary Voltage Secondary Voltage Secondary Current Compatible Light engine
CH1 96W 100-277V 24VDC 1X4A SW, SW-HE, SW-HE+, SC, WD
CH2 96W 100-277V 24VDC 2X2.08A DW, DW-HE
CH3 96W 100-277V 24VDC 3X1.39 A RGB
CH4 96W 100-277V 24VDC 4X1.04A RGBW

Q-Tran QZ Datasheet   (ORD-PSC-QZ)

Q-Tran QZ Master Ordering Guide   (qz-dmx-master-ordering-guide-set)

Q-Tran QZ Installation Guide   (INSTALL-PSC-QZ)
